Y- strainer

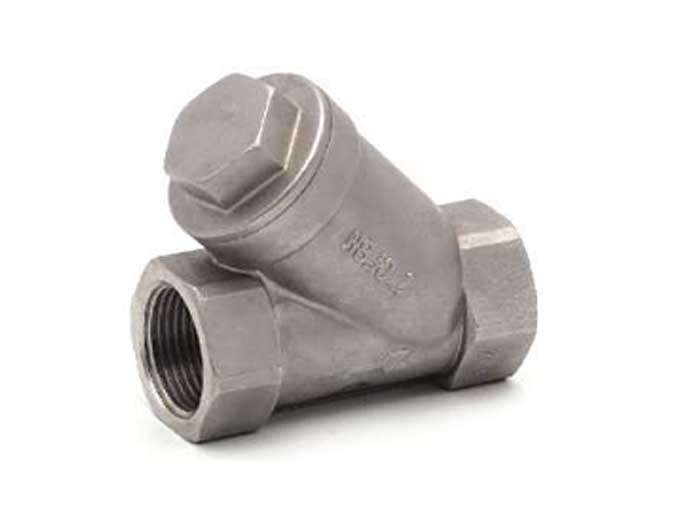

Y- strainer
The Y- strainer is a pipe fitting designed to remove impurities from fluids. Its Y-shaped design allows for easy installation and cleaning, ensuring efficient filtration and protecting downstream equipment from debris and contaminants.
GATE VALVE
|
HYDRAULIC CONTROL VALVE
|
CHECK VALVE
Y- strainer产品内容

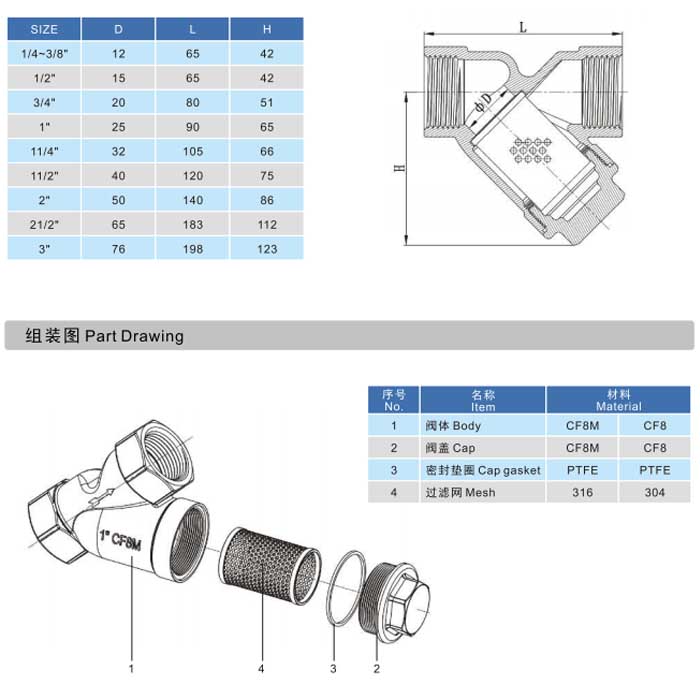

安装尺寸 Dimensions
标准规范Standard specification
公称压力Rating:ASME B16.34
螺纹标准Thread:ASME B1.20.1,BS21,DIN2999/259,
ISO228-1,JIS B 0203,ISO7-1
试验标准Inspection: API 598, EN12266
