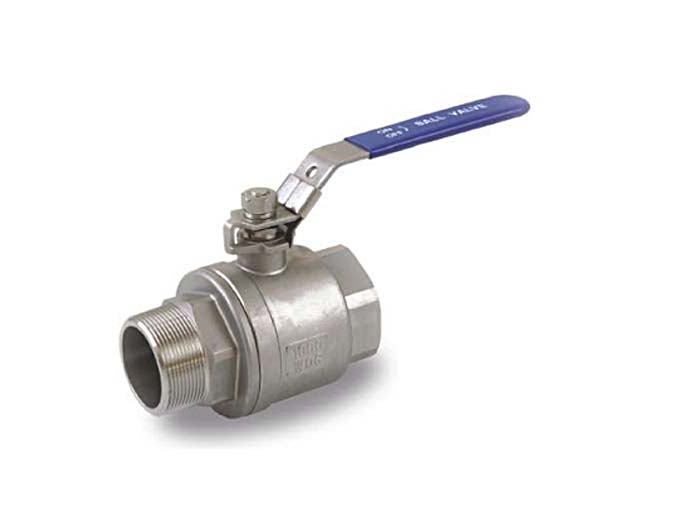

2PC Threaded Ball Valve M|F-He'an Trading (Tianjin) Co., Ltd2PC Threaded Ball Valve M/F-H-tech Unted

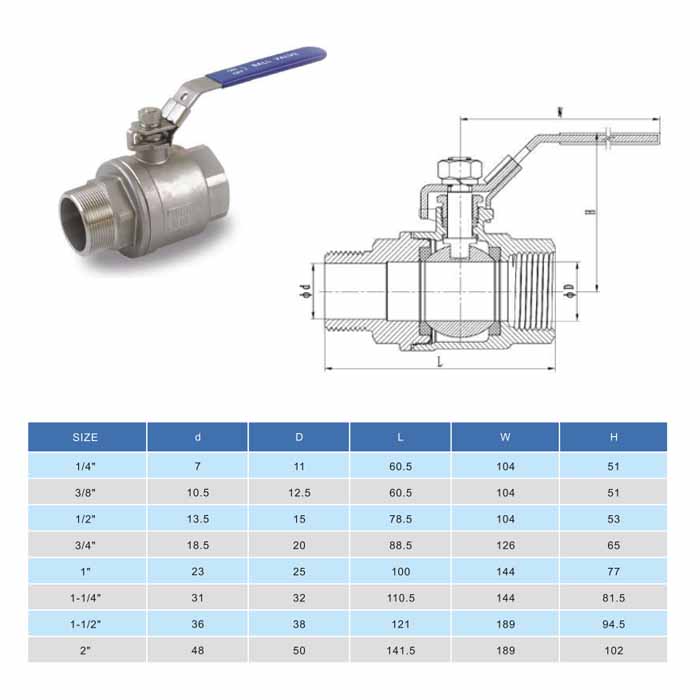

安装尺寸Dimensions
标准规范Standard specification
设计标准Design: API 608
公称压力Rating: 1000PSI
螺纹标准Thread:ASME B1.20.1,BS21,DIN2999/259,
ISO228-1,JIS B 0203,ISO7-1
设计特点 Design features
1、全通径设计
Full bore
2、阀杆防暴出设计
Blow-out proof stem
3、内外牙连接
