HREADED BALL VALVE
>
3PC Threaded Ball Valve Light Type

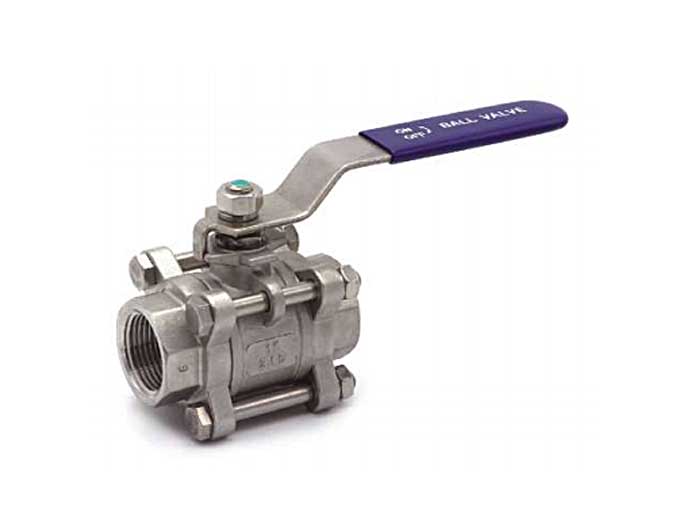

3PC Threaded Ball Valve Light Type
The 3PC Threaded Ball Valve Light Type is a compact, three-piece valve designed for ease of installation and maintenance. Its internal threading provides a secure connection, making it ideal for low-pressure fluid control applications.
GATE VALVE
|
HYDRAULIC CONTROL VALVE
|
CHECK VALVE
3PC Threaded Ball Valve Light Type产品内容

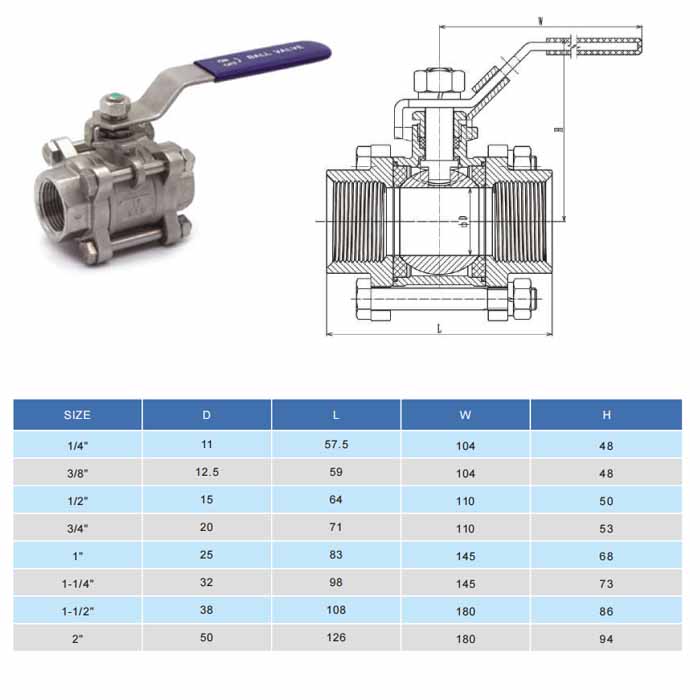

安装尺寸Dimensions
标准规范Standard specification
设计标准Design: API608
公称压力Rating:1000PSI
螺纹标准Thread:ASMEB 1.20.1,BS21,DIN2999/259,
ISO228-1,JIS B 0203,IS07-1
试验标准Inspection: API598,EN12266
设计特点
1、全通径设计
Full bore
2、阀杆防暴出设计
Blow-out proof stem
