A
Bar flowmeter, also known as an average velocity tube flowmeter, is a modern differential pressure （DP） flow measurement instrument widely used in industrial processes. It operates on the principle of measuring the pressure difference between the upstream and downstream sections of a fluid stream, enabling accurate calculation of flow rate.
The

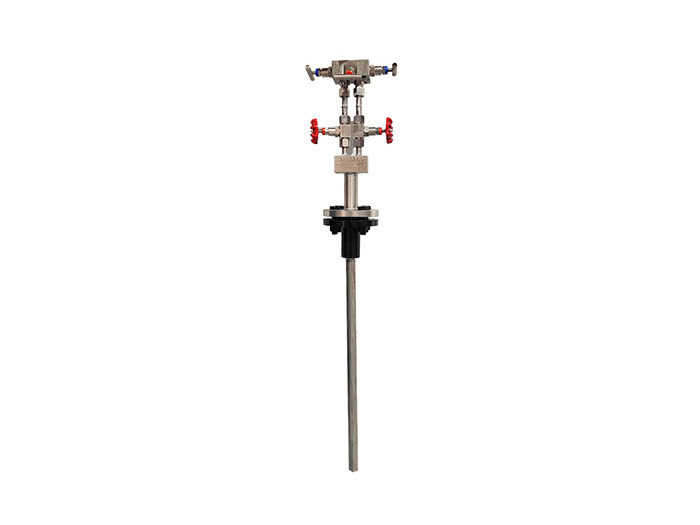

Bar flowmeter consists of a streamlined probe inserted into the pipeline. The probe has multiple pressure taps that capture the total pressure （stagnation pressure） at the front and static pressure at the sides or rear. By comparing these pressures, the device determines the fluid velocity and, consequently, the volumetric or mass flow rate. This design minimizes pressure loss compared to traditional orifice plates, making it energy-efficient and cost-effective for large-diameter pipes.
One of the key advantages of bar flowmeters is their ability to handle a wide range of flow rates and fluid types, including gases, liquids, and steam. They are particularly suitable for applications where high accuracy and low maintenance are required, such as in the oil and gas, chemical, and power generation industries.
Additionally, bar flowmeters offer excellent repeatability and reliability, with some models achieving accuracy levels of ±1% or better. Their compact design allows for easy installation in existing pipelines, even in confined spaces. Moreover, they are less sensitive to wear and tear, as they have no moving parts, reducing the need for frequent recalibration or repairs.
In summary,
Bar flowmeters represent a significant advancement in flow measurement technology, combining high accuracy, low pressure loss, and ease of use. Their versatility and robustness make them an ideal choice for a variety of industrial flow measurement applications.
