Y- spring Check Valve

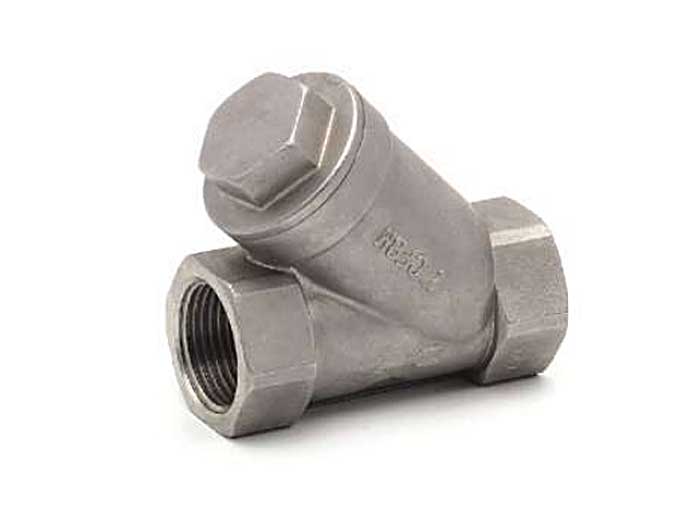

Y- spring Check Valve
The Y- spring Check Valve is a flow control device that prevents reverse flow using a spring-assisted mechanism. Its Y-shaped body design minimizes pressure drop and allows easy installation, ensuring reliable backflow prevention in piping systems.
GATE VALVE
|
HYDRAULIC CONTROL VALVE
|
CHECK VALVE
Y- spring Check Valve产品内容

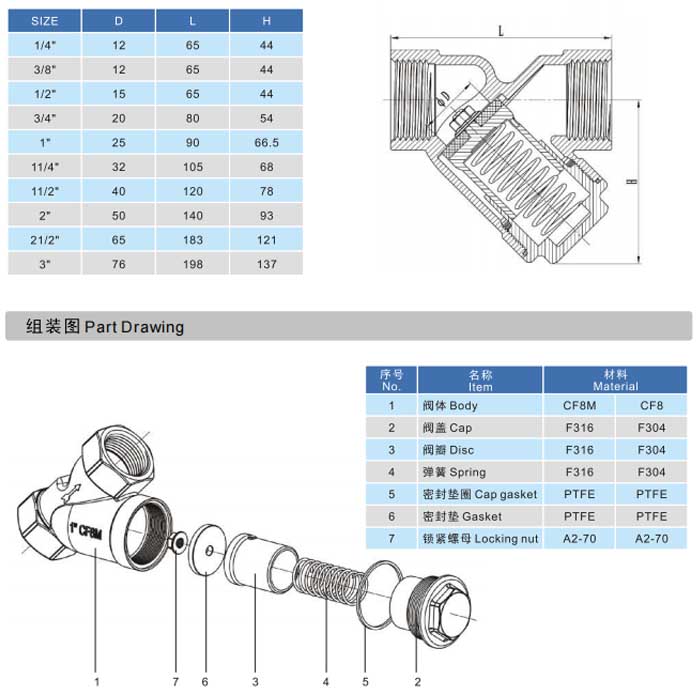

安装尺寸Dimensions
标准规范Standard specification
设计标准 Design: API 602
公称压力Rating:800PSI
螺纹标准Thread:ASME B 1.20.1,BS21,DIN2999/259，
ISO228-1,JIS B 0203,ISO7-1
试验标准Inspection: API 598, EN12266
