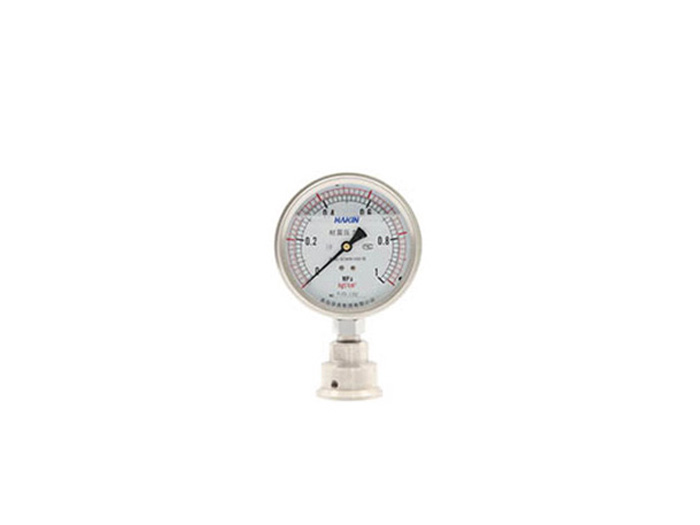

A diaphragm shock-resistant pressure gauge is a specialized instrument designed to measure pressure in environments where mechanical shocks, vibrations, or pulsations are prevalent. By integrating a diaphragm-based sensing mechanism with advanced shock-absorbing features, this gauge ensures reliable and accurate pressure readings even under harsh conditions, making it ideal for industrial applications such as hydraulic systems, pumps, compressors, and mobile machinery.
Key Features
Diaphragm Sensing Element: Unlike traditional Bourdon tube gauges, this model uses a flexible diaphragm, typically made of stainless steel or corrosion-resistant alloys, which deforms in response to pressure changes. The diaphragm’s design minimizes the effects of shock and vibration on measurement accuracy.
Shock-Resistant Construction: The gauge incorporates a rugged, reinforced case and internal damping mechanisms, such as fluid filling （e.g., glycerin or silicone oil） or shock-absorbing mounts, to protect sensitive components from mechanical stress.
Overpressure Protection: Many models include safety features like built-in stops or snubbers to prevent diaphragm damage during pressure spikes.
Corrosion Resistance: Wetted parts are constructed from materials resistant to chemical exposure, ensuring durability in aggressive media.
High Accuracy and Stability: Despite shocks, the gauge maintains precision through advanced calibration and minimal hysteresis, providing consistent readings.
Applications
Hydraulic and Pneumatic Systems: Monitors pressure in heavy machinery, construction equipment, and automotive test benches.
Oil and Gas Industry: Withstands vibrations in drilling rigs, pipelines, and offshore platforms.
Chemical Processing: Ensures reliable operation in reactors, mixers, and transfer lines with pulsating flows.
Power Generation: Tracks pressure in turbines, boilers, and cooling systems exposed to mechanical disturbances.
Benefits
The diaphragm shock-resistant
PRESSURE GAUGE combines durability with accuracy, reducing downtime and maintenance costs in dynamic environments. Its ability to function reliably under shock and vibration ensures uninterrupted process control and safety.
In summary, this gauge is a critical tool for industries where pressure measurement must endure mechanical challenges, offering a blend of robustness and precision to optimize performance.
