2PC Threaded Ball Valve DIN3202-M3

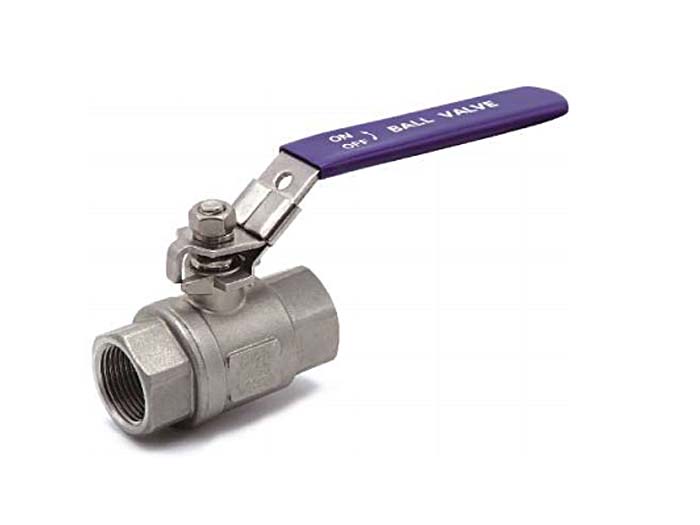

2PC Threaded Ball Valve DIN3202-M3
The 2PC Threaded Ball Valve DIN3202-M3 is a two-piece valve with an extended body, providing easier access for installation and maintenance. It ensures reliable sealing and smooth operation, suitable for various industrial piping systems.
GATE VALVE
|
HYDRAULIC CONTROL VALVE
|
CHECK VALVE
2PC Threaded Ball Valve DIN3202-M3产品内容

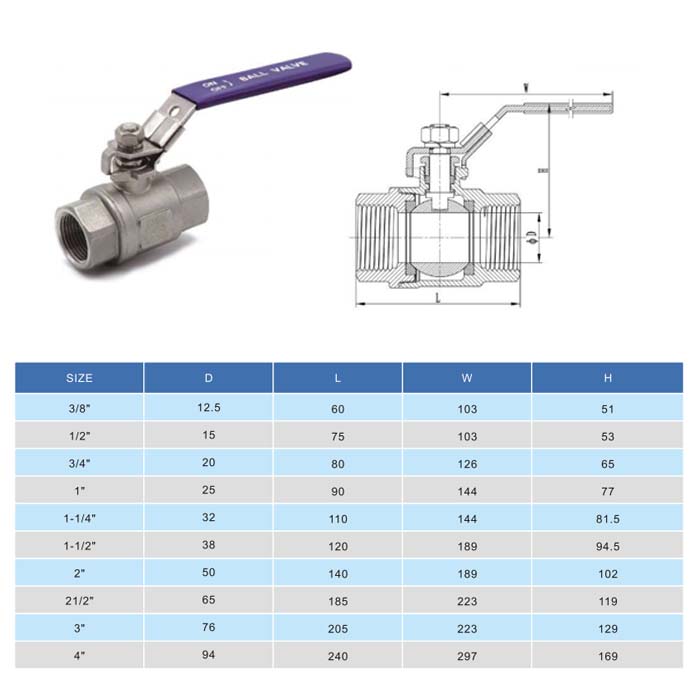

安装尺寸Dimensions
标准规范Standard specification
设计标准Design:API 608
公称压力Rating: 1000PSI
螺纹标准Thread:ASME B1.20.1,BS21,DIN2999/259,
ISO228-1,JIS B 0203,ISO7-1
试验标准Inspection: API598,EN12266
设计特点 Design features
1、全通径设计Full bore
2、阀杆防暴出设计Blow-out proof stem
