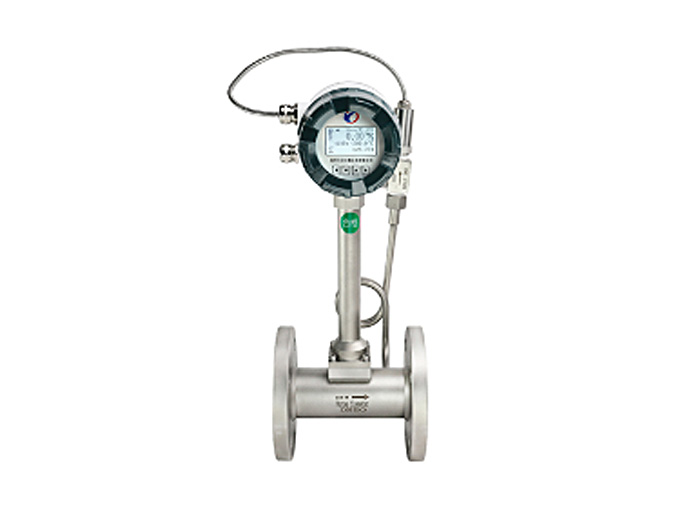

Vortex flowmeter is a fluid oscillatory flow meter made based on the Karman principle. Inserting a non streamlined cylinder into a flowing fluid, the medium will generate two rows of staggered vortices on both sides of the rear of the flowing cylinder. Suitable for measuring mass and volume flow rates of superheated steam, saturated steam, compressed air, ammonia, water, and low corrosive liquids.
Product Features
Integrated temperature and pressure compensation design, capable of measuring the flow rates of saturated steam, superheated steam, and industrial gases under standard conditions.
The elongated body protects the stability of flow separation and provides more detailed measurement signals.
Special working conditions can use a double triangular column design structure to filter out excess noise and separate the correct flow signal from the mechanical structure.
By combining the trustworthy VFM algorithm, traffic measurement can be achieved in detail.
Trustworthy temperature and pressure measurement points, reasonable measurement positions, and direct digital signal acquisition protect the accuracy of temperature and pressure sampling values, improve measurement sensitivity, and achieve an accuracy of less than 1%.
Application industry
Chemical, petroleum, food and beverage industries, pharmaceutical industry, steel and metallurgy industry, paper and pulp industry, water industry, etc
Typical applications
Measurement of standard consumption of compressed air
Measurement of steam mass flow rate and consumption
Measurement of natural growth gas standard and consumption
Measurement of industrial gases such as nitrogen, oxygen, hydrogen, etc
Trade calculation of industrial gases such as steam and compressed air
