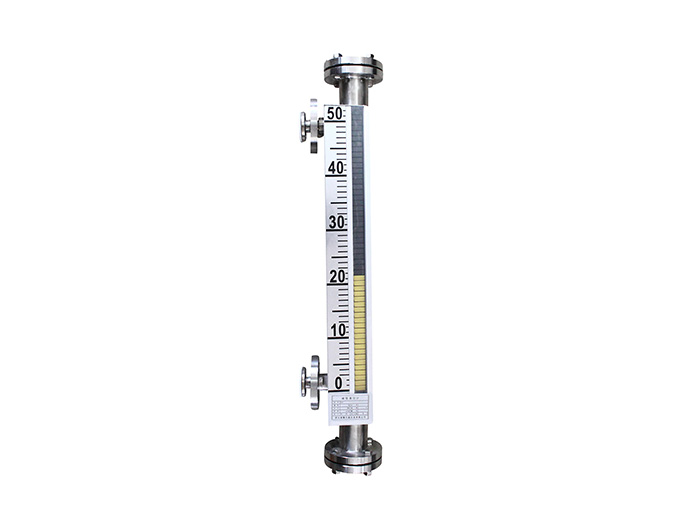

Magnetic flap level gauge, also known as a magnetic level indicator （MLI）, is a widely used instrument for visual and continuous level monitoring in industrial tanks, vessels, and pipelines. Combining simplicity, accuracy, and durability, it serves as a cost-effective alternative to traditional glass tube level gauges, especially in applications involving hazardous, high-pressure, or corrosive media.
Design and Working Principle
The
Magnetic flap level gauge consists of a non-magnetic chamber （typically made of stainless steel） connected to the process vessel via flanges or threads. Inside the chamber, a series of magnetic flaps （or indicators） are sealed and aligned vertically. A magnetic float, designed to match the density of the process liquid, rises and falls with the liquid level inside the vessel. As the float moves, its magnetic field causes the external flaps to pivot, flipping from one color （e.g., white） to another （e.g., red） to indicate the liquid-gas interface. This provides a clear, local visual indication of the liquid level at a glance.
Key Features
Visual Clarity: The contrasting colors of the flaps ensure easy readability, even from a distance or in low-light conditions.
Safety: Unlike glass tubes, the sealed chamber prevents leaks and eliminates the risk of breakage, making it suitable for toxic or flammable fluids.
Durability: Constructed with corrosion-resistant materials, it withstands harsh chemicals and extreme temperatures.
Customizable: Available in various lengths, pressure ratings, and mounting options to fit different tank geometries.
Low Maintenance: No moving parts outside the chamber reduce wear and maintenance requirements.
Applications
Magnetic flap level gauges are widely used in industries such as oil and gas, chemical processing, power generation, water treatment, and food and beverage. They are ideal for monitoring levels in storage tanks, boilers, reactors, and separators.
Optional Enhancements
For advanced functionality, magnetic flap level gauges can be integrated with switches （for alarm or control purposes） or transmitters （for remote level indication via 4–20 mA or digital signals）.
In summary, the
Magnetic flap level gauge offers a robust, user-friendly, and reliable solution for
LIQUID LEVEL measurement, enhancing process safety and efficiency across diverse industrial applications.
