A

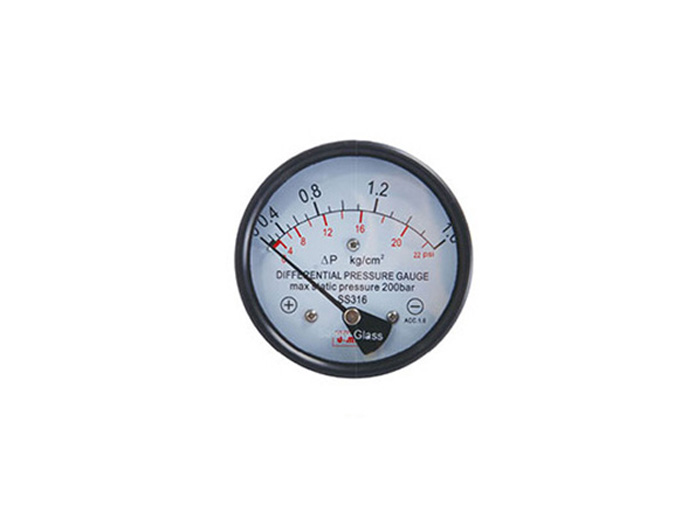

Magnetic induction differential pressure gauge is an advanced device designed to measure the difference in pressure between two points in a fluid system with high accuracy and reliability. Utilizing magnetic induction technology, this gauge offers a non-contact, wear-resistant solution for applications where traditional mechanical differential pressure meters may face limitations due to friction, corrosion, or harsh operating conditions.
Working Principle
The gauge operates on the principle of magnetic coupling. It consists of two pressure chambers separated by a diaphragm or sensing element. As pressure is applied to each chamber, the diaphragm deflects proportionally to the pressure differential. This movement is transferred via a magnetic linkage to an indicating pointer or a digital display, eliminating the need for direct mechanical connections between the sensing element and the indicator. The magnetic induction mechanism ensures smooth, frictionless operation, enhancing durability and reducing maintenance requirements.
Key Features
High Accuracy: Magnetic coupling minimizes mechanical wear and hysteresis, providing precise and consistent readings.
Non-Contact Design: Reduces the risk of leakage and contamination, making it suitable for sterile or corrosive environments.
Durability: Stainless steel construction and corrosion-resistant materials ensure longevity in challenging conditions.
Wide Range of Applications: Compatible with gases, liquids, and vapors, making it versatile for industries such as HVAC, chemical processing, pharmaceuticals, and oil and gas.
Easy Installation and Maintenance: Compact design and modular components simplify setup and servicing.
Applications
HVAC Systems: Monitoring filter performance and airflow differentials.
Process Control: Ensuring optimal pressure levels in reactors, distillation columns, and pipelines.
Cleanrooms and Pharmaceuticals: Maintaining sterile conditions by avoiding direct fluid contact.
Water Treatment: Measuring pressure drops across filters and membranes.
The
Magnetic induction differential pressure gauge combines reliability, precision, and ease of use, making it an ideal choice for critical pressure differential measurements in demanding industrial environments. Its non-contact design and robust construction ensure accurate performance with minimal downtime.
