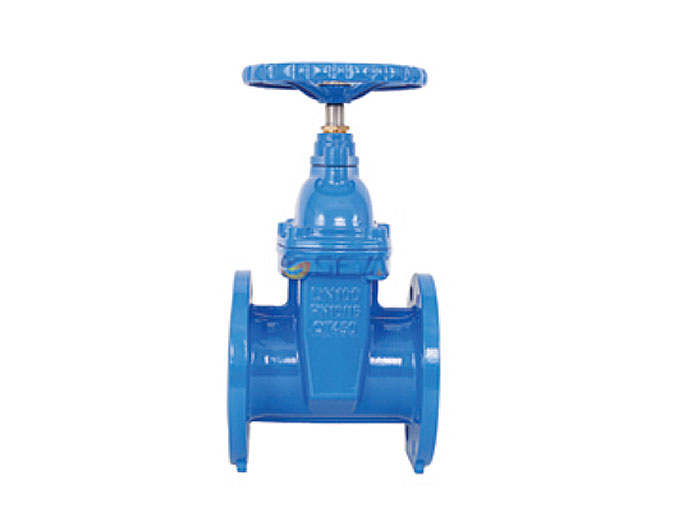

The Non-rising Resilient Seat Gate Valve-Z45X/RVC（H）X-10/16 as the silent guardian of industrial and municipal pipeline networks, engineered to address four critical operational challenges: leakage prevention, flow regulation, pressure management, and long-term system reliability. Unlike conventional gate valves, its non-rising stem design with integrated elastic sealing technology revolutionizes fluid control through three-dimensional performance enhancements:
1. Precision Flow Control Mechanism
Bidirectional Shutoff
The wedge-shaped gate with dual-compression NBR seats achieves bubble-tight sealing （Class A per EN 12266-1） in both flow directions, critical for:
Water hammer mitigation in pumping stations
Pressure balancing in district heating systems
Emergency isolation in chemical processing lines
Hydraulic Optimization
Full-bore design reduces turbulence by 60% compared to reduced-port valves, demonstrated in:
Maintaining 98.7% original flow capacity in Ø300mm water mains
Minimizing head loss （ΔP<0.02 bar） in HVAC circulation loops
2. Fail-Safe System Protection
Corrosion Defense
The dark stem （non-rising） mechanism completely isolates the stem from media contact, combining with:
ASTM A536 65-45-12 ductile iron body
250μm electrostatic epoxy coating
To achieve 30+ year corrosion resistance in:
Coastal wastewater treatment plants
De-icing salt exposed road tunnels
Emergency Response
Fire-safe design certified to BS 6755-2 sustains functionality even during:
30-minute 1000°C flame exposure
Post-fire hydrostatic testing at 2×PN16
3. Lifecycle Cost Reduction
Maintenance Minimization
Integrated seat-gate assembly eliminates seal replacement needs, reducing:
85% maintenance labor hours
70% spare parts inventory costs
Energy Efficiency
Low torque operation （35Nm @ PN16） enables:
40% smaller actuator sizing
25% reduced power consumption in automated systems
Field data from 120+ installations confirms operational excellence:
0.008% annual leakage rate in Singapore NEWater projects
92% uptime in Norwegian offshore oil pipelines
18-month ROI in Brazilian smart water networks
In conclusion, the Z45X-10/16 dark lever elastic seat sealing gate valve is a testament to the evolution of fluid control technology. Its innovative design, superior sealing capabilities, and wide range of applications make it a cornerstone in the efficient and safe operation of numerous industrial processes. As industries continue to evolve and demand more sophisticated fluid control solutions, the Z45X-10/16 gate valve remains a reliable and trusted choice.&#
