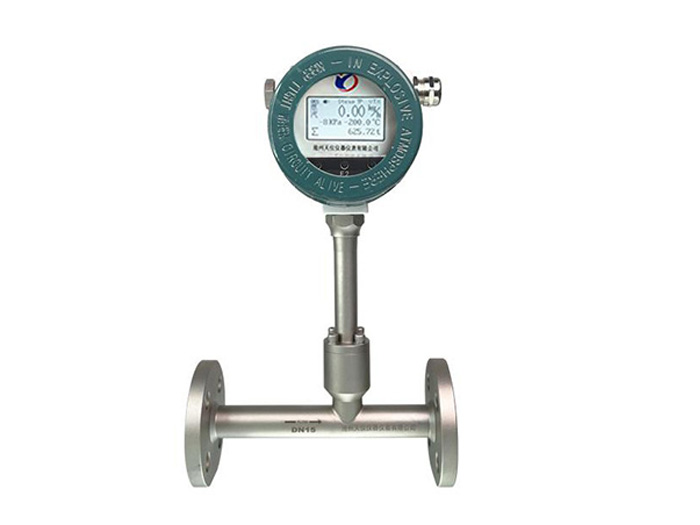

Pipe section thermal gas mass flowmeter is a specialized instrument designed for precise measurement of gas mass flow within a pipeline. This type of flowmeter leverages thermal dispersion principles to determine the flow rate by monitoring the heat transfer characteristics of the gas as it flows through a specific section of the pipe.
The device consists of two key sensors integrated into a pipe section: a heated temperature sensor and an unheated reference temperature sensor. The heated sensor is maintained at a constant temperature differential above the gas temperature, achieved through an electrical heating element. As gas flows past the heated sensor, it carries away heat, and the rate of heat dissipation is directly related to the gas's mass flow rate.
The reference sensor measures the actual gas temperature, providing crucial data for accurate calculations. By comparing the temperature difference between the heated and reference sensors, the flowmeter's electronics can compute the mass flow rate of the gas. This method eliminates the need for pressure and temperature compensation, as it directly measures mass flow, which is independent of these variables under normal conditions.
Pipe section thermal gas mass flowmeters offer several advantages, including high accuracy, fast response times, and low maintenance requirements. They are suitable for a wide range of gases and can operate effectively in various industrial environments. Additionally, their compact design allows for easy installation directly into existing pipelines without the need for extensive modifications.
In summary, the
Pipe section thermal gas mass flowmeter is an efficient and reliable solution for gas mass flow measurement. Its thermal dispersion technology provides accurate and real-time data, making it an invaluable tool for industries requiring precise control and monitoring of gas flow processes.
