A

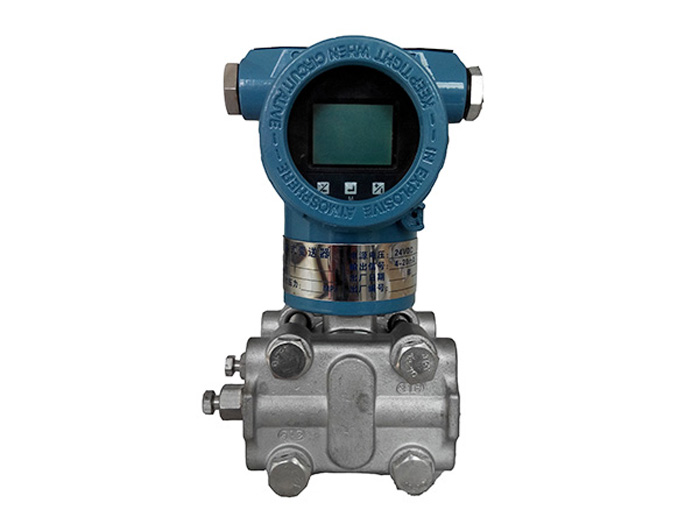

DIFFERENTIAL PRESSURE （DP） transmitter is a critical device used to measure the pressure difference between two points in a process system. It plays a vital role in various industries, including oil and gas, chemical processing, power generation, and water treatment, by providing accurate and reliable pressure data for monitoring, control, and safety applications.
Working Principle
At its core, a DP transmitter consists of a pressure-sensing element, typically a diaphragm or a piezoelectric sensor, connected to two pressure ports. When pressure is applied to these ports, the sensing element deforms, generating an electrical signal proportional to the pressure difference. This signal is then conditioned and converted into a standardized output, such as 4-20 mA, HART, or digital protocols like FOUNDATION Fieldbus or PROFIBUS, for transmission to a control system or display unit.
Key Features
High Accuracy and Precision: Modern DP transmitters offer high accuracy, often within ±0.1% of the full-scale range, ensuring reliable measurements.
Wide Range of Applications: Capable of measuring pressure differences in gases, liquids, and vapors, making them versatile for various process conditions.
Robust Design: Built to withstand harsh environments, including extreme temperatures, high pressures, and corrosive media.
Advanced Diagnostics: Many models include self-diagnostic capabilities, enabling predictive maintenance and reducing downtime.
Integration with Control Systems: Seamless compatibility with distributed control systems （DCS） and programmable logic controllers （PLCs） for automated process control.
Applications
DP transmitters are used for level measurement in tanks and vessels, flow measurement （when combined with orifice plates or flow meters）, filter monitoring, and detecting leaks or blockages in pipelines. Their ability to provide real-time data enhances process efficiency, safety, and quality control.
In summary,
differential pressure transmitters are indispensable tools in industrial automation, offering precise pressure measurement and contributing to the optimization of complex processes.
