In today's industrial automation and civil construction fields, precise and stable water supply systems are crucial. The

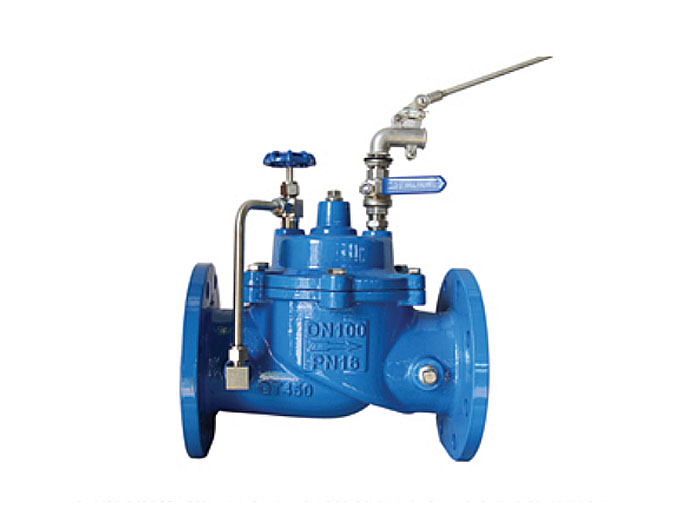

Remote Float Valve-F100X, as a valve product that integrates efficiency, intelligence, and durability, is gradually becoming a standard configuration for water supply systems such as pools, water tanks, and water towers. This article will provide an in-depth analysis of the working principle, performance characteristics, and installation and maintenance points of the F100X remote control floating ball valve, presenting its excellent performance and wide application value to you.
1、 Working principle and performance characteristics
The F100X remote control floating ball valve utilizes the principle of buoyancy of the floating ball in water, and converts the displacement of the floating ball into the motion of the valve through a mechanical transmission system （such as connecting rods, levers, etc.）, thereby achieving precise control of the fluid medium. When the water level in the pool or tank drops, the float ball also drops, triggering the valve to open and allowing water to enter to replenish the liquid level; When the water level reaches the preset height, the float rises and closes the valve to prevent liquid from continuing to flow in and causing overflow. Its structure is novel and reasonable, controlled by hydraulic principles, with stable and reliable operation, large flow rate, and the valve disc has the characteristics of fast opening and slow closing, effectively avoiding water hammer impact and ensuring the stable operation of the water supply system. In addition, the F100X remote control float valve has a tight seal, long service life, easy installation and maintenance, greatly reducing maintenance costs.
2、 Application scenarios and installation maintenance

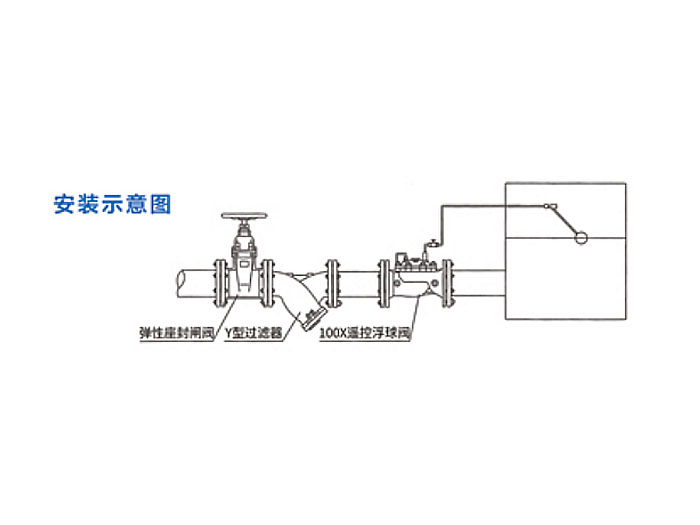

F100X remote control float ball valve is widely used in automatic water supply systems for various water tanks, water tanks, and water towers in industrial and mining enterprises, civil buildings, as well as atmospheric boiler circulation water supply systems. During installation, it is necessary to ensure that the pipeline is thoroughly flushed and a filter is installed to prevent impurities from affecting valve performance. At the same time, the installation position of the float and guide valve should be easy to observe, away from the main valve inlet or set up a small water tank to avoid misoperation caused by water surface fluctuations. In terms of maintenance, due to the simple structure and strong sealing ring activity of the F100X remote control floating ball valve, it is easy to disassemble and replace. Regular inspection and replacement of vulnerable parts such as sealing rings can ensure the long-term stable operation of the valve.
In summary, the
Remote Float Valve-F100X has become an indispensable component in modern water supply systems due to its precise control performance, stable operation, and convenient installation and maintenance. Whether in the field of industrial automation or civil construction, F100X remote control float ball valve can provide reliable water supply guarantee, helping various industries achieve more efficient and intelligent water management.
