A

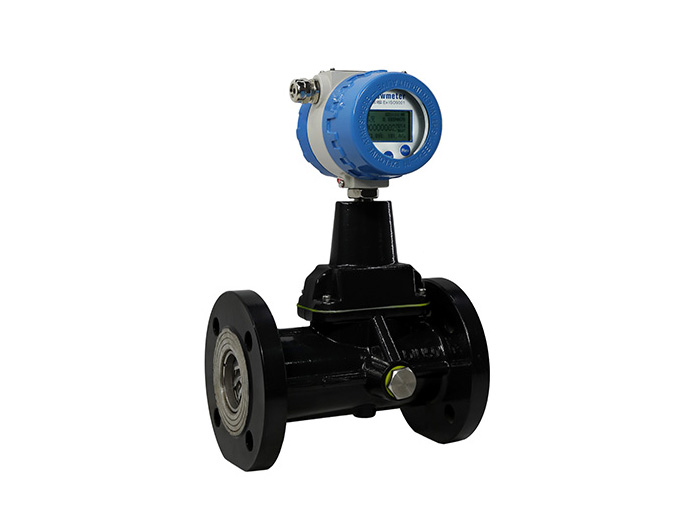

Spiral vortex flowmeter is an innovative flow measurement device designed to accurately quantify the flow rate of fluids, particularly gases and liquids, in industrial pipelines. It operates based on the principle of vortex shedding, where a bluff body （the spiral vortex generator） placed in the fluid stream causes periodic vortex formation downstream. These vortices are shed alternately from each side of the bluff body, creating a characteristic frequency that is directly proportional to the fluid's flow velocity.
What sets the
Spiral vortex flowmeter apart is its unique spiral vortex generator. Unlike traditional vortex shedding flowmeters with straight bluff bodies, the spiral design enhances the stability and intensity of the vortices. This results in a more robust and reliable signal, even in challenging flow conditions such as low flow rates, varying fluid densities, or the presence of minor pipe vibrations.
The spiral vortex flowmeter offers several advantages. It provides high accuracy and repeatability across a wide range of flow rates, making it suitable for diverse industrial applications. Additionally, it has a relatively low pressure drop compared to some other flow measurement technologies, which helps to conserve energy and reduce operational costs.
Moreover, the spiral vortex flowmeter is easy to install and maintain. It typically requires minimal straight pipe runs upstream and downstream, reducing installation space and costs. Its simple construction and durable materials also contribute to long service life and low maintenance requirements.
In summary, the
Spiral vortex flowmeter is a highly effective and versatile flow measurement solution. Its advanced spiral vortex generator technology ensures accurate and reliable flow measurement under various operating conditions, making it a preferred choice for industries seeking precise and efficient flow control.
