The

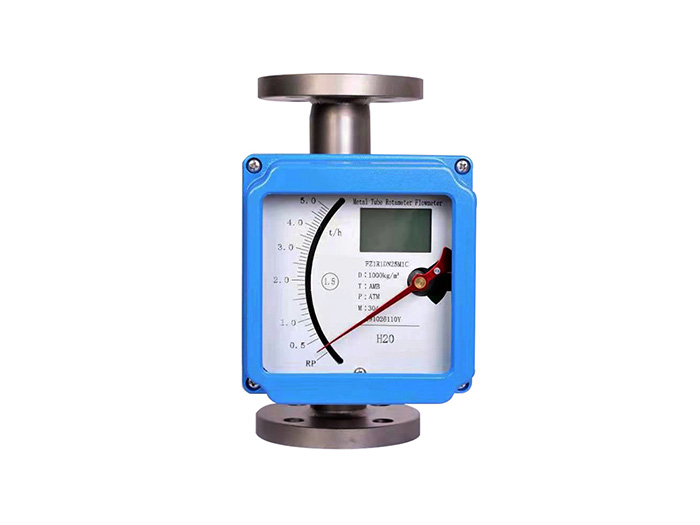

Square shell flange remote transmission metal tube float flowmeter is an advanced flow measurement device that combines robust construction, precise measurement, and convenient remote data transmission capabilities.
This flowmeter features a distinctive square shell design, which offers several advantages. The square shape provides enhanced structural stability, making it well - suited for industrial environments with potential mechanical impacts or vibrations. It also allows for easy mounting and integration into existing piping systems, and the flat surfaces simplify the installation of additional accessories or indicators.
The flange connection is a standard feature, ensuring a secure and leak - proof connection to the pipeline. Flange connections are widely used in industrial applications due to their reliability and ease of assembly and disassembly, which is beneficial for maintenance and replacement tasks.
The core of the flowmeter is the metal tube float mechanism. As the fluid flows through the conical metal tube, the float rises or falls in accordance with the flow rate. This simple yet effective variable - area principle provides accurate and repeatable flow measurements for a variety of liquids and gases.
One of the standout features is the remote transmission capability. Equipped with advanced sensors and signal transmitters, the flowmeter can convert the float position into electrical signals, such as 4 - 20mA current signals or digital signals like HART. These signals can be transmitted over long distances to a control room or monitoring system, enabling real - time flow monitoring and centralized data management. This remote functionality not only improves operational efficiency but also enhances safety by reducing the need for manual on - site readings in potentially hazardous areas.
