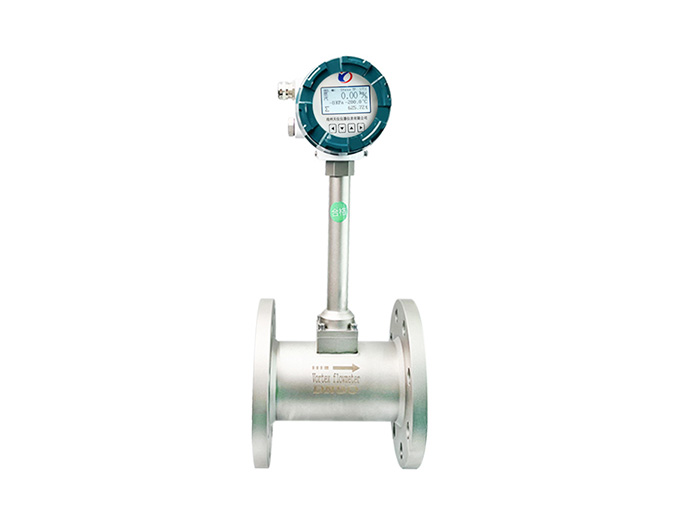

Vortex flowmeter is a fluid oscillatory flow meter made based on the Karman principle. Inserting a non streamlined cylinder into a flowing fluid, where the medium is
Two rows of staggered vortices will be generated on both sides of the rear of the flowing column. Suitable for mass flow rates of superheated steam, saturated steam, compressed air, ammonia, water, and low corrosive liquids
Measurement of volumetric flow rate.
Product Features
Standard temperature compensation function, easy to install.
The elongated body protects the stability of flow separation and provides more detailed measurement signals.
Special working conditions can use a double triangular column design structure to filter out excess noise and separate the correct flow signal from the mechanical structure.
Combining reliable VFM algorithm to achieve detailed flow measurement.
High sensitivity, the lower limit of gas flow rate can be as low as 2m/s, and the liquid can reach 3m/s. The flange standard and measuring body length can be customized according to customer needs.
Application industry
Chemical, petroleum, natural growth gas, food and beverage industry, pharmaceutical industry, steel and metallurgy industry, paper and pulp industry, water industry, etc
Typical applications
Measurement of saturated steam and superheated steam
Measurement of Industrial Gas Consumption
Measurement of Compressed Air Consumption
SIP and CPI processes in the food, beverage, and pharmaceutical industries
