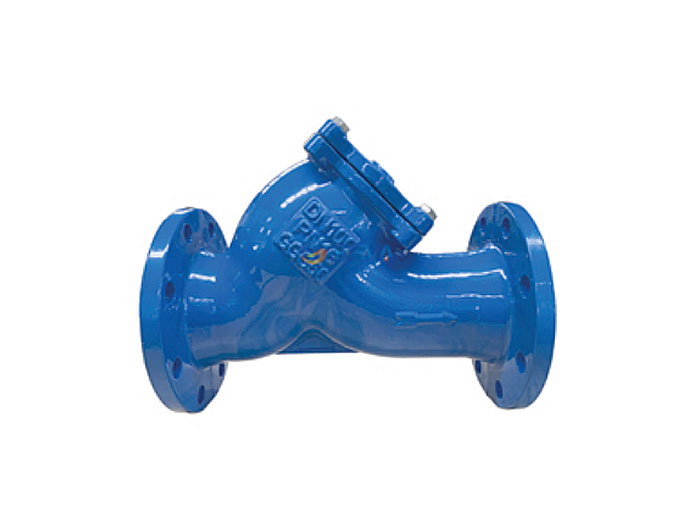

Y-type filter is an indispensable filter device in the pipeline system of conveying medium.
Y-type filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, constant water level valve or other equipment t69%ove impurities in the
medium to protect the normal use of valves and equipment.
Y-TYPE FILTER has the advantages of advanced structure, small resistance,convenient sewage discharge and so on. Y type filter suitable medium can be water, oil, gas. The general water network is18-30 mesh, the ventilation network is10-100 mesh, the oil network is 100-480 mesh. Basket filter is mainly composed of nozzles, main pipe,blue filter, flange, flange cover and fasteners. When the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, while the clean fluid passes through the filter blue and is discharged from the filter outlet .
