In modern industrial production, energy supply, and civil facilities, the
adjustable pressure reducing valve plays a crucial with its unique pressure reduction and pressure stabilization functions. This article will delve into the working principle of the
adjustable pressure reducing valve, revealing how it precisely regulates fluid pressure provide stable and reliable fluid control for various systems.
I. The Core Mechanism of Pressure Regulation
The core of the adjustable pressure reducing valve lies in ability to automatically adjust the valve disc opening and flow rate based on the set value of the outlet pressure, achieving pressure reduction and stabilization. This mechanism mainly relies on the differential control principle or the hydraulic pilot control principle. When the fluid passes through the pressure reducing valve, the valve adjusts the flow rate and kinetic energy by changing the area according to the preset pressure value, resulting in different pressure losses to achieve the purpose of pressure reduction. At the same time, the pressure feedback system monitors the pressure in real-time and adjusts the valve opening through a balance of spring force to ensure that the pressure behind the valve remains constant within the set error range.
II. Structure and Working Principle

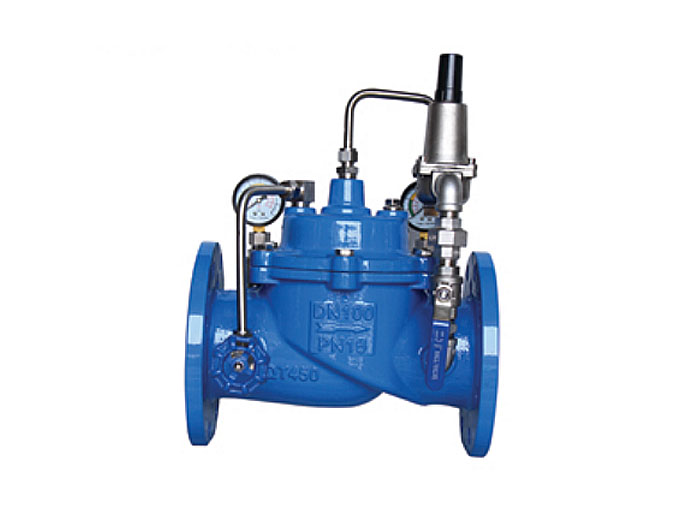

The adjustable pressure reducing valve usually consists of a main valve, a pressure feedback system, and a control pipeline. The valve includes key components such as the valve body, diaphragm seat, valve cover, diaphragm, valve stem, and valve plate. When the valve is opened, the medium flows to the outlet while also entering the upper cavity of the main valve diaphragm chamber through the pilot valve, thus stabilizing opening height of the main valve plate and ensuring a constant pressure behind the valve. When the outlet pressure changes, the pressure feedback system responds quickly, adjusting the pressure of main valve upper cavity to change the valve opening, and then adjusting the flow rate and kinetic energy of the medium passing through the valve, so that the pressure behind the returns to the set value.
III. Flexible Application and Outstanding Performance
With its flexibility and outstanding performance, the adjustable pressure reducing valve is widely in various fluid control scenarios. Its adjustable characteristics make the pressure reduction and pressure stabilization effect extremely good, and it can cope with different pressure and flow changes. In, the adjustable pressure reducing valve also has the advantages of convenient operation and maintenance, large caliber, and small pressure loss, greatly improving the safety and efficiency of the system Whether it is gas and liquid pressure control in industrial production or natural gas transportation and oil pipelines in the field of energy supply, the adjustable pressure reducing valve has shown its value.
In summary, the adjustable pressure reducing valve, with its precise pressure regulation mechanism, scientific structural composition, and extensive application scenarios, has become an important of the fluid control field. With the continuous progress of technology and the continuous expansion of the market, the adjustable pressure reducing valve will continue to play its important role in future, providing stable and reliable fluid pressure control for various systems.
