The 304 stainless steel ordinary remote magnetic flap level gauge is a versatile and reliable instrument designed for continuous level measurement in various industrial applications. Constructed with high-quality 304 stainless steel, this level gauge offers excellent corrosion resistance, durability, and compatibility with a wide range of liquids, making it suitable for use in chemical, petrochemical, food and beverage, water treatment, and pharmaceutical industries.
Design and Functionality

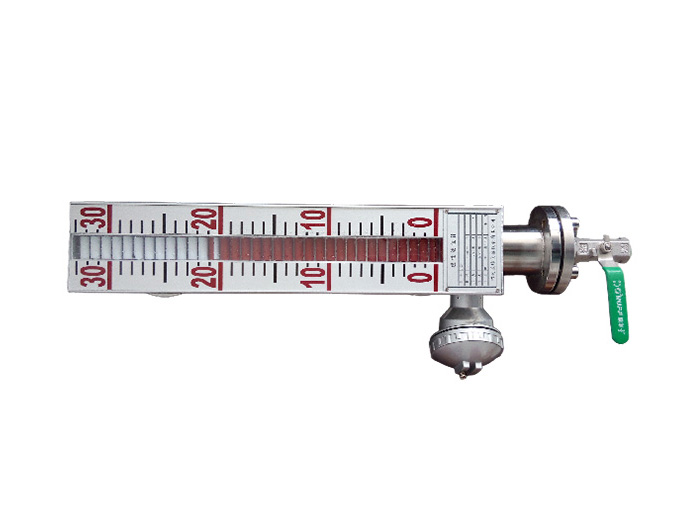

The level gauge consists of a measuring chamber filled with magnetic floats that move up and down in response to changes in the liquid level. The floats are designed to align with the liquid's density, ensuring accurate level detection. Attached to the exterior of the chamber is a row of magnetic flaps （or indicators） that pivot to display the liquid level visually. Each flap flips to reveal a contrasting color （typically red for the liquid phase and white for the gas phase）, providing a clear and intuitive local indication.
For remote monitoring and control, the gauge is equipped with a reed switch-based transmitter or a Hall effect sensor. These sensors detect the magnetic field changes caused by the float's movement and convert them into electrical signals, such as 4–20 mA current loops or digital outputs （e.g., HART, RS485）. The signals are then transmitted to a control room, PLC, or SCADA system, enabling real-time level tracking and process automation.
Key Features
Durable Construction: 304 stainless steel ensures longevity and resistance to corrosion.
Visual and Remote Indication: Combines local magnetic flap display with remote signal transmission.
Easy Installation: Modular design allows straightforward mounting on tanks or vessels.
Low Maintenance: No mechanical wear between the float and flaps reduces upkeep requirements.
Customizable: Available in various lengths, pressure ratings, and process connections to suit specific applications.
Applications
This level gauge is ideal for monitoring
LIQUID LEVELs in storage tanks, distillation columns, reactors, and boilers. Its robust design and remote transmission capabilities make it suitable for both indoor and outdoor installations, even in moderately corrosive environments.
In summary, the 304 stainless steel ordinary remote magnetic flap level gauge provides a cost-effective, accurate, and user-friendly solution for level measurement, enhancing process efficiency and safety across industries.
