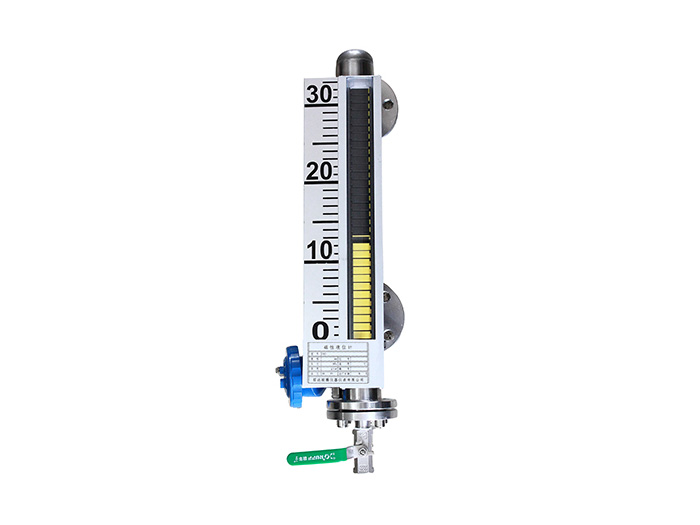

The 316 ultra-wide indicator type magnetic flap level gauge is a high-performance industrial instrument designed for precise and highly visible liquid level measurement in challenging environments. Constructed with 316 stainless steel, this level gauge offers exceptional corrosion resistance, making it ideal for applications involving aggressive chemicals, seawater, or high-purity media in industries such as chemical processing, pharmaceuticals, oil and gas, and marine engineering.
Design and Functionality
The level gauge features an ultra-wide indicator panel, significantly enhancing visibility compared to standard designs. The panel consists of a series of sealed magnetic flaps （typically red for liquid and white for gas） that pivot to reveal the
LIQUID LEVEL as the internal magnetic float rises or falls. The float, matched to the liquid’s density, ensures accurate tracking of the interface. The 316 stainless steel chamber is hermetically sealed to prevent leaks and protect against process media, while the wide display ensures clear readability from a distance or in low-light conditions.
Key Features
Ultra-Wide Display: The expanded indicator panel improves visibility, reducing the risk of misreading and enhancing operational safety.
Corrosion Resistance: 316 stainless steel construction withstands harsh chemicals, saline environments, and high-temperature applications.
High Accuracy: Magnetic coupling ensures reliable level detection without mechanical wear, maintaining precision over time.
Safety and Reliability: Sealed design eliminates glass tubes, preventing breakage and leaks, and complies with safety standards for hazardous media.
Customizable Options: Available in various lengths, pressure ratings, and process connections to suit specific tank or vessel requirements.
Applications
This level gauge is ideal for monitoring levels in storage tanks, reactors, distillation columns, and boilers, especially where wide visibility and corrosion resistance are critical. It is commonly used in chemical plants, desalination facilities, pharmaceutical manufacturing, and offshore platforms.
Optional Enhancements
For advanced functionality, it can be equipped with limit switches for alarm or control purposes, or a 4–20 mA transmitter for remote level indication and integration with automation systems.
In summary, the 316 ultra-wide indicator type magnetic flap level gauge combines durability, visibility, and accuracy, providing a robust solution for demanding industrial level measurement applications.
