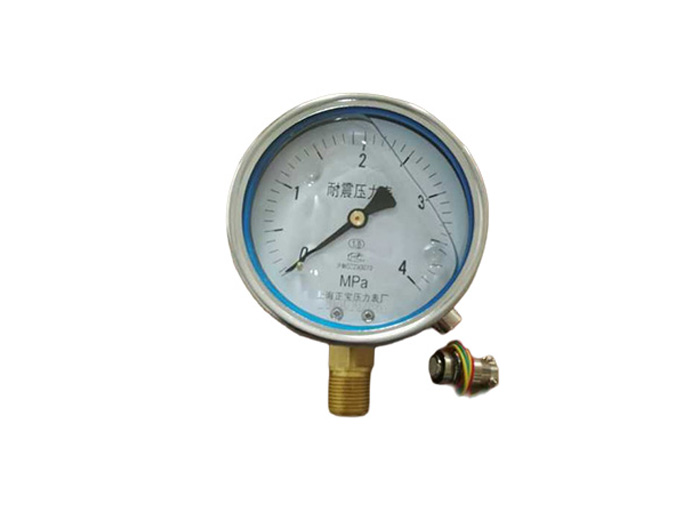

A
resistance remote-transmitting pressure gauge is an advanced instrument designed to convert mechanical pressure into electrical signals, enabling real-time data transmission and remote monitoring in industrial environments. By integrating a pressure-sensing mechanism with a resistance-based transducer, this gauge outputs proportional resistance values （e.g., 100–500 Ω） or standardized electrical signals （4–20 mA, 0–10 V）, making it compatible with automation systems, PLCs, and SCADA networks.
Key Features
Dual-Function Integration: Combines a traditional pressure-sensing element （such as a Bourdon tube or diaphragm） with a precision potentiometer or resistance sensor. As pressure changes, the mechanical movement adjusts the resistance, generating a scalable electrical output.
High Accuracy and Stability: Ensures minimal measurement error and long-term reliability, even under fluctuating temperatures, vibrations, or corrosive media.
Durable Design: Constructed with a stainless steel case and corrosion-resistant wetted parts, it withstands harsh industrial conditions, including high pressure, humidity, and mechanical stress.
Adjustable Output: Supports customizable zero and span settings to align with specific pressure ranges and signal requirements, enhancing flexibility for diverse applications.
Easy Installation: Offers two-wire or three-wire configurations, simplifying wiring and integration into existing control systems.
Applications
Process Automation: Monitors pressure in pipelines, reactors, and hydraulic systems, enabling automated adjustments and alarms.
Energy Sector: Regulates pressure in boilers, compressors, and HVAC systems for efficient operation.
Water Management: Tracks pressure in treatment plants, irrigation systems, and distribution networks.
Oil & Gas: Ensures safe pressure monitoring in drilling, refining, and pipeline transportation.
Benefits
This gauge eliminates the need for separate pressure transmitters, reducing costs and installation complexity. Its real-time data transmission improves process transparency, supports predictive maintenance, and enhances safety by enabling remote troubleshooting.
In summary, the
resistance remote-transmitting pressure gauge is a versatile, cost-effective solution for industries seeking seamless integration of pressure measurement with digital control systems, driving efficiency and reliability in modern manufacturing and infrastructure.
