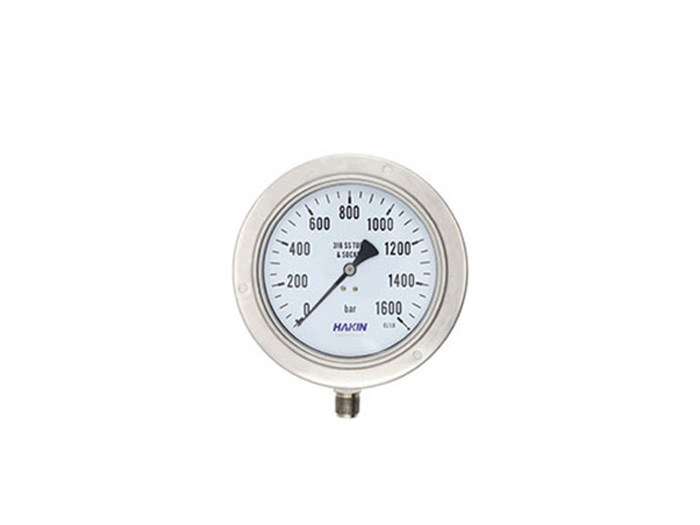

An ultra high-pressure gauge is a specialized device engineered to measure and monitor pressures far exceeding conventional ranges, typically up to 150,000 psi （10,000 bar） or higher. Designed for applications in industries such as oil and gas exploration, waterjet cutting, hydroforming, aerospace testing, and high-pressure chemical processing, these gauges combine robust construction with advanced sensing technology to deliver accurate and reliable readings in extreme conditions.
Key Features
High-Strength Materials: Constructed from corrosion-resistant alloys like stainless steel, Inconel, or Hastelloy, these gauges withstand aggressive media and withstand the mechanical stresses of ultra-high pressures without deformation or failure.
Precision Sensing Mechanisms: Utilizes reinforced Bourdon tubes, diaphragm sensors, or digital piezoelectric transducers optimized for linearity and minimal hysteresis, ensuring accuracy even at the upper limits of their range.
Safety Design: Features include overpressure protection （e.g., safety stops or rupture discs）, shatter-resistant windows, and hermetically sealed cases to prevent leaks and protect operators in case of catastrophic failure.
Glycerin or Oil Filling: Many models are filled with damping fluid to reduce pointer oscillation, enhance readability, and shield internal components from shock and vibration.
Calibration Traceability: Manufacturers provide calibration certificates traceable to international standards （e.g., NIST, DKD）, ensuring credibility for critical applications.
Applications
Oil and Gas: Monitors downhole pressures during drilling, hydraulic fracturing （"fracking"）, and well testing.
Waterjet Cutting: Ensures precise control of water and abrasive mixtures at pressures exceeding 90,000 psi.
Aerospace: Tests rocket engines, fuel systems, and structural components under extreme conditions.
Industrial Manufacturing: Used in hydroforming, isostatic pressing, and high-pressure autoclaves for composite curing.
Benefits
Ultra high-pressure gauges enable safe and efficient operation in industries where pressure control is paramount. Their durability and accuracy reduce the risk of equipment damage, enhance process reliability, and support compliance with stringent safety regulations.
In summary, ultra high-
PRESSURE GAUGEs are indispensable for applications demanding precision under extreme conditions, combining cutting-edge engineering with rugged design to meet the challenges of modern industrial processes.
