An

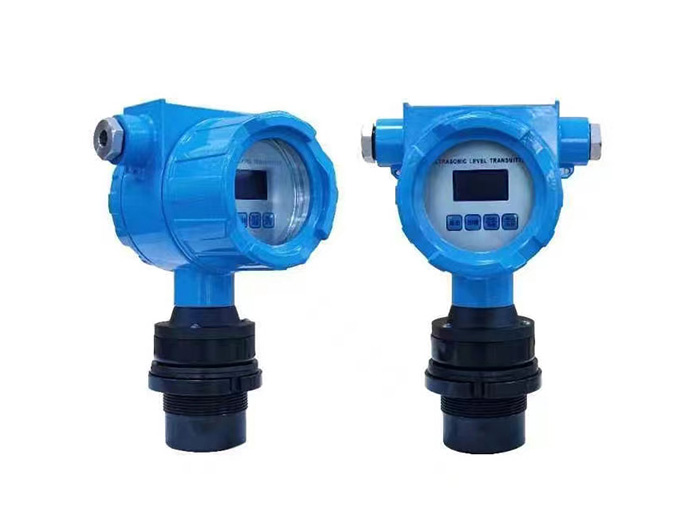

Ultrasonic level meter is a cutting-edge instrument designed to measure the distance to a liquid or solid surface by emitting high-frequency sound waves and analyzing their echoes. Operating on the principle of time-of-flight （ToF）, this non-contact technology offers a safe, reliable, and cost-effective alternative to traditional level measurement methods, particularly in challenging industrial environments.
Working Principle
The
Ultrasonic level meter consists of a transducer that emits ultrasonic pulses （typically 20 kHz to 200 kHz） toward the target surface. When the pulses encounter the material, they are reflected back to the transducer. The level is then derived by subtracting this distance from the known height of the sensor above the tank base.
Key Advantages
Non-Contact Measurement: Eliminates mechanical wear and reduces maintenance, making it ideal for corrosive, sticky, or high-temperature media.
Versatility: Suitable for liquids, slurries, and bulk solids in open or closed vessels, including tanks, silos, and channels.
Safety: No direct contact with the process medium minimizes contamination risks and is ideal for hazardous or sterile environments.
Easy Installation: Requires minimal setup and can be retrofitted to existing structures.
Real-Time Monitoring: Provides continuous level data with high accuracy （typically ±0.25% to ±1% of the measured range）.
Applications
Ultrasonic level meters are widely used in industries such as water and wastewater treatment, food and beverage, chemicals, mining, and agriculture. Common applications include monitoring water levels in reservoirs, measuring inventory in storage tanks, and controlling feed rates in silos.
Limitations
Performance may be affected by foam, vapor, or extreme temperatures, which can scatter or absorb ultrasonic waves. In such cases, radar-based alternatives may be preferred.
In summary,
Ultrasonic level meters offer a versatile, non-invasive solution for level measurement, combining accuracy with ease of use across diverse industrial settings.
