The

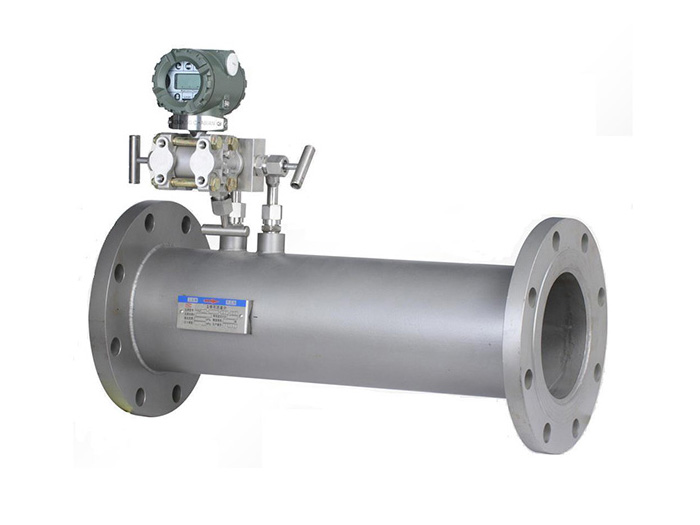

V-Cone flowmeter is a sophisticated differential pressure （DP） flowmeter renowned for its precision and versatility in industrial flow measurement applications. Developed in the 1980s, it represents a significant advancement over traditional DP flowmeters by utilizing a unique V-shaped cone as the flow restriction element.
The
V-Cone flowmeter operates on the principle of measuring the pressure difference created as fluid flows around the cone. Unlike conventional orifice plates, which create a central restriction, the V-Cone's design generates an annular restriction, promoting more uniform flow distribution and reducing turbulence. This results in a more stable and accurate pressure signal, even at low flow rates.
One of the key advantages of the V-Cone flowmeter is its low pressure loss compared to other DP flowmeters. The cone's streamlined shape minimizes energy losses, making it an energy-efficient choice for continuous flow monitoring. Additionally, the V-Cone flowmeter requires shorter straight pipe runs upstream and downstream, simplifying installation in tight spaces and reducing overall system costs.
The V-Cone flowmeter is suitable for a wide range of fluids, including liquids, gases, and steam, across various industries such as oil and gas, chemical processing, and power generation. Its robust design ensures long-term reliability and minimal maintenance, even in harsh operating conditions.
Furthermore, the V-Cone flowmeter offers high accuracy and repeatability, with typical uncertainties of ±0.5% to ±1%. Its wide turndown ratio allows for accurate measurement across a broad range of flow rates, making it a versatile solution for diverse flow measurement needs.
In summary, the
V-Cone flowmeter is a cutting-edge flow measurement device that combines precision, efficiency, and reliability. Its innovative design and superior performance make it an ideal choice for industries seeking accurate and cost-effective flow monitoring solutions.
