Application
It applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300C and with the viscosity of 5x10 6-1.5x10m²/s（5~1500cSt）.It applies to hydraulic System,too.
Reducing the speed, the pump can delivery the liquid that viscosity can be up to 5x10cSt.
Application Scope
It can give performance as transfer pump or booster pump in oil delivery system, and fuel pump for delivery,pressurization and injectiion in fuel supply system. It can be also applied as hydraulic pump supplying hydraulic power in hydraulic system and in all industry fields as lubricating pump.
Structure Features

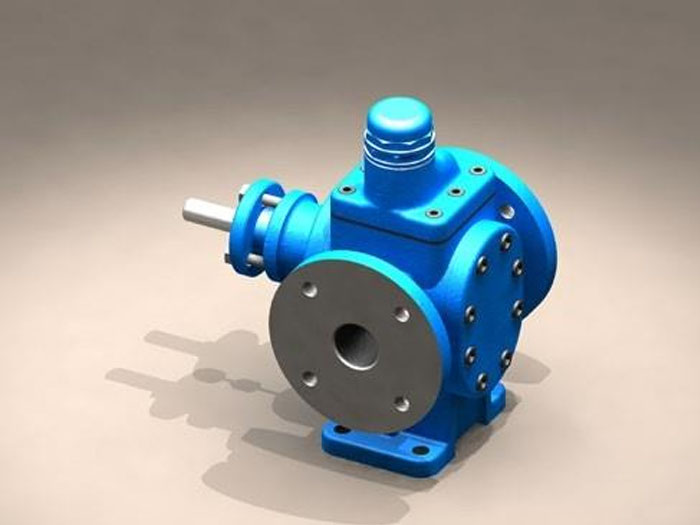

YCB series gear pumps are mainly composed of gears,axles,pumpbody,pump cover,safety valve and axleend seals etc.（Speical requirement, magnetic force drive and zero-leakage structure can be selected.）The gears are adoped double circular teech shape, which makes the gears less wear on gear surface,stable revolution,low noise,long service life and high efficiency,due to no sliding on the teeth during gear falling-in.This kind of pump has got rid of traditional design and come into a new decade in designing and application,
The pump is designed with safety valve for protection against overload. The full return flow pressure is 1.5 times higher than the rated exhaust pressure of the pump.It can be adjused within the allowance of exhaust pressure range according to circumstance. But please note the safety valve can't be applied as presusure- reducing valve for long time. You may installpressure-reducing valve separately on pipe-line if needed.
There are two kinds of axle-end seals,mechanical seal and packing seal,which can be chosen according to the clients'requirement or application circumstance.
